Eventuri Audi SQ7 / SQ8 4.0 TFSI Carbon Intake

Beschrijving

Merk: Eventuri

Type: Audi SQ7/ SQ8

Artikelnummer: EVE-4V8TT-CF-INT

Filter type: L2

Beschrijving:

AUDI RSQ8 SQ8 SQ7
Performance Gain Stock Map: 14-20hp, 17-21ft-lb
Performance Gain Stage 1 Map*: 25-28hp, 20-23ft-lb

Fitment: 2020+ RSQ8/SQ7/SQ8, 2019+ Urus, 2020+ Cayenne Turbo, 2019+ Bentayga

Our 4.0TFSI V8 EA825 intake is a ground-up redesign and optimisation of the entire air inlet track. Every component including the lid has been developed to allow the V8 twin turbos to pull in air with less drag resulting in industry leading performance gains. The stock airbox lid itself creates a restriction on the size of the flow collector which feeds the inlets from the filters. So we increased the height of the central section of the lid to allow for a larger flow collector and larger cone filters to be used. This removes the inherent restriction and sets our intake apart from the rest of the field who by utilising the stock lid must also use a restricted collector and filtration media. The turbo inlets are up to 43% larger in cross sectional area than stock and are designed with an advanced dimpled inner surface to reduce frictional losses between the flow and the wall boundary. By allowing a “cushion” of air at the wall surface, airflow is able to move through the inlets at higher flow rates with reduced pressure loss. This allows the turbos to draw air with less resistance and therefore reduce the wastegate duty cycle resulting in higher overall performance.

The Eventuri 4.0TFSI V8 intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. We use 100% pre-preg carbon fiber with no fibreglass which means we can achieve a smooth internal surface to maintain smoother airflow. Here are the details for each component and the design ethos behind them:

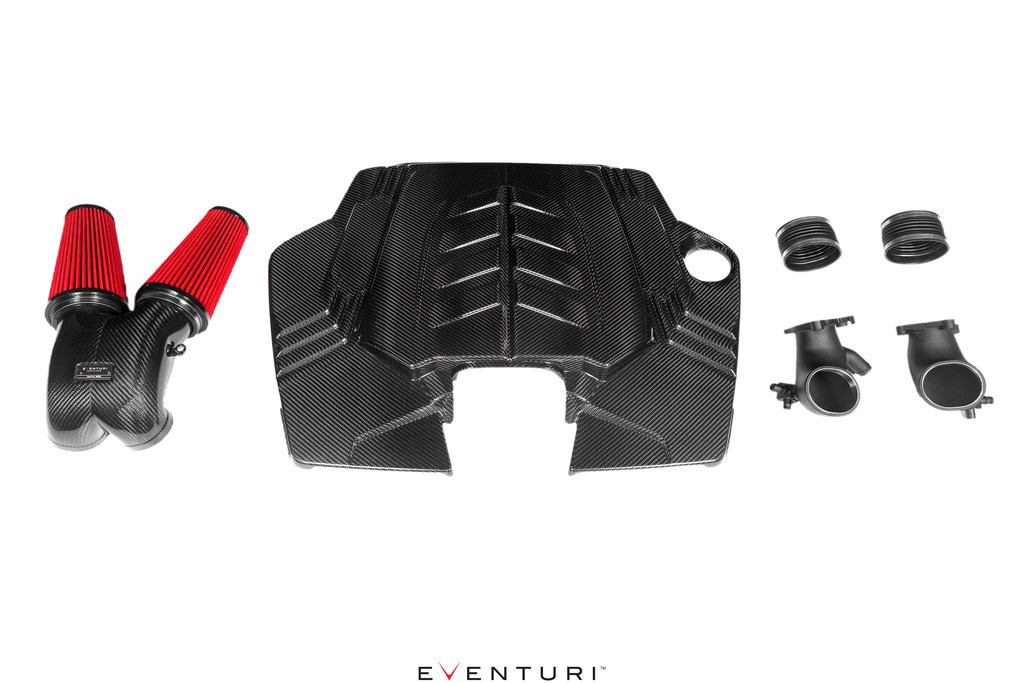

Each intake system consists of:

– Enlarged Carbon Fiber AIrbox Lid
– Carbon Fiber Flow Collector
– 2 Thermoplastic Turbo Inlets with Dimpled Inner Surface
– 2 x Bespoke High Flow Dry Cone Filters
– Custom Flexible Hoses
– CNC Machined Breather Ports and Reinforcement Rings

The first constraint we had to overcome in order to dramatically increase the overall volume of the intake was the airbox lid. The stock lid leaves a shallow opening for the flow collector and also restricts the filtration medium being used. By creating a raised portion in the middle of the lid we are able to create more space for a larger flow collector and also for larger filters. The lid is made from prepreg carbon fibre and uses the same mounting points as the stock lid.

CARBON FLOW COLLECTOR & FILTERS
Directing the airflow from the filters to the turbo inlets is the flow collector. The stock one is constricted in size due to eth stock kid but having removed that restriction, we were able to dramatically increase the volume of our version. In addition, this also gave us the freedom to replace the stock filter with higher flowing cone filters which also have a larger total surface area.

TURBO INLETS
The biggest restriction in the stock system are the turbo inlets. The stock inlets not only are small in size but they also have 2 flexible sections. The flexible section immediately in front of the turbo creates turbulence as the engine moves under acceleration. To combat this, the stock inlets also have flow guides at the exit of the inlets but these also create a restriction. We removed the first flexible section which also meant that we could increase the internal volume. By increasing the inlet sizes, the turbos are able to pull in air with less restriction hence allowing for a quicker spool.

Montage:

Motorsport24.nl is de webshop van Chip Performance. Wij kunnen ook uw Eventuri Audi SQ7 / SQ8 4.0 TFSI Carbon Intake voor u monteren tegen een scherp uur tarief. Onze werkplaats is voorzien van het nieuwste gereedschap & vakkundig personeel waardoor wij alles snel en efficiënt kunnen installeren.
