Eventuri BMW E6X M5/M6 Black Carbon Intake

Beschrijving

Merk: Eventuri

Type: BMW E6x M5 /M6

Artikelnummer: EVE-E60-CF-INT

Filter type: B

Beschrijving:

BMW E60 M5 / E63 M6
Performance Gain: 12-15hp, 12-18ft-lb

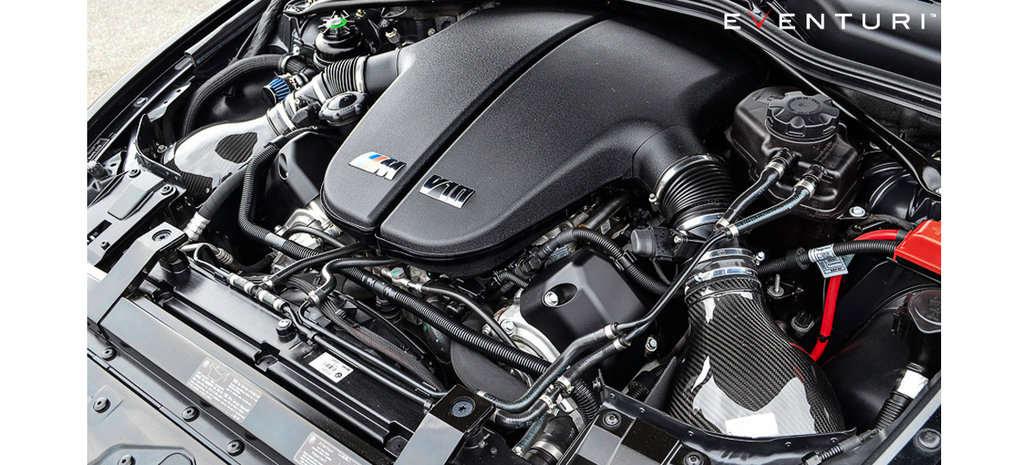

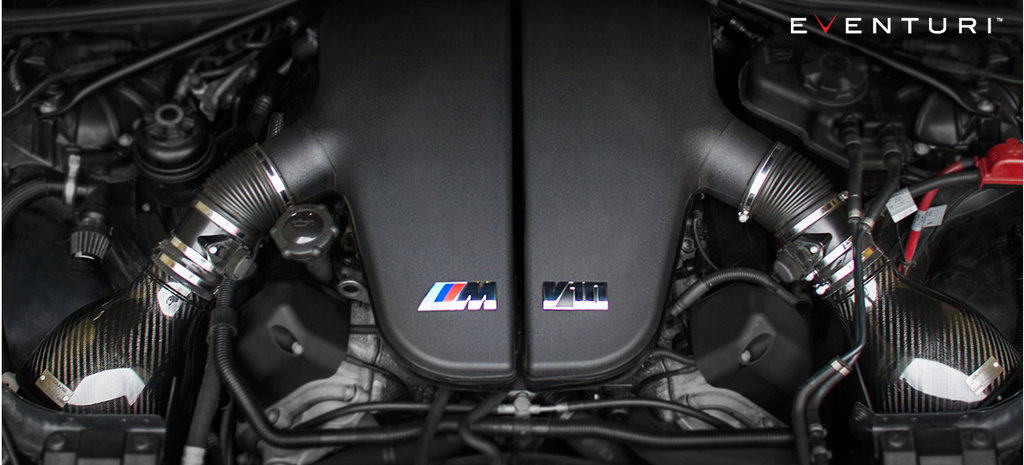

The E60/E63 M5/M6 intake system is designed to make a positive impact for the whole driving experience. By taking advantage of aerodynamic principles and using computational fluid dynamics to optimise the airflow, we have engineered an intake system which delivers on all fronts – sharpened throttle response, more torque and power, improving driveability and of course, an amazing V10 induction sound.
The Eventuri Difference
The S85 Eventuri system uses our Patent Pending Carbon fibre Housing which provides an aerodynamically efficient airflow path from the filter to the MAF tube. Not just another cone filter with a heat shield but a unique design which invokes the Venturi effect.

Part Numbers:
• EVE-E60-CF-INT : BMW E6X M5/M6 Black Carbon intake

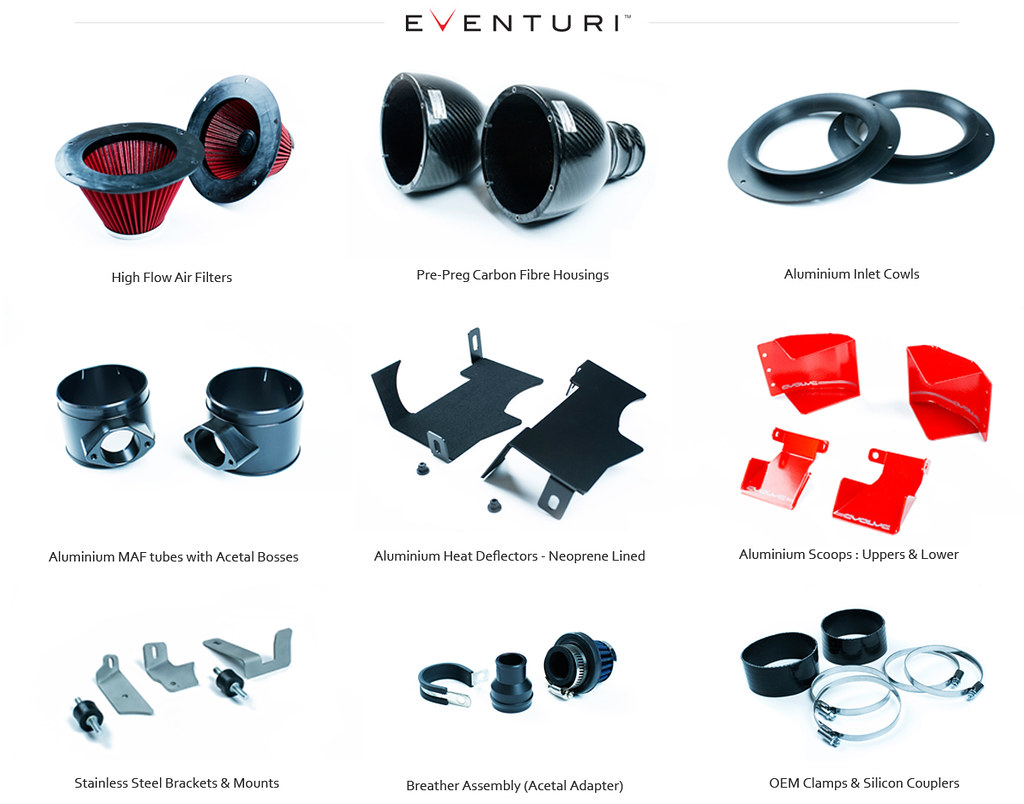

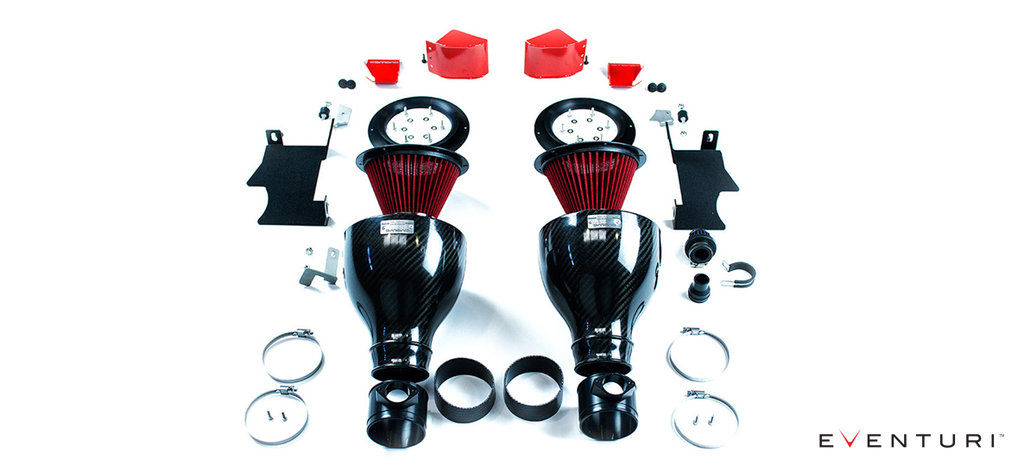

Components:

The E6X Intake system contains a comprehensive number of high quality components including:
o 2 x 100% Pre Preg Carbon Fibre Housings
o High Flow Air Filters
o 2 x CNC Machined and Anodised Aluminium MAF Sensor Housings with Machined Plastic MAF Sensor Mounts
o CNC Machined Secondary Air Flow Breather Adapter
o Aluminium Intake Cowls
o Laser Cut Mounting Brackets
o Laser Cut and Neoprene Lined Heat Shields
o Coated Aluminium Upper and Lower Air Scoops
o OEM Spec Hose Clamps with High Quality Silicon Couplers
o OEM Quality Anti Vibration Mounts

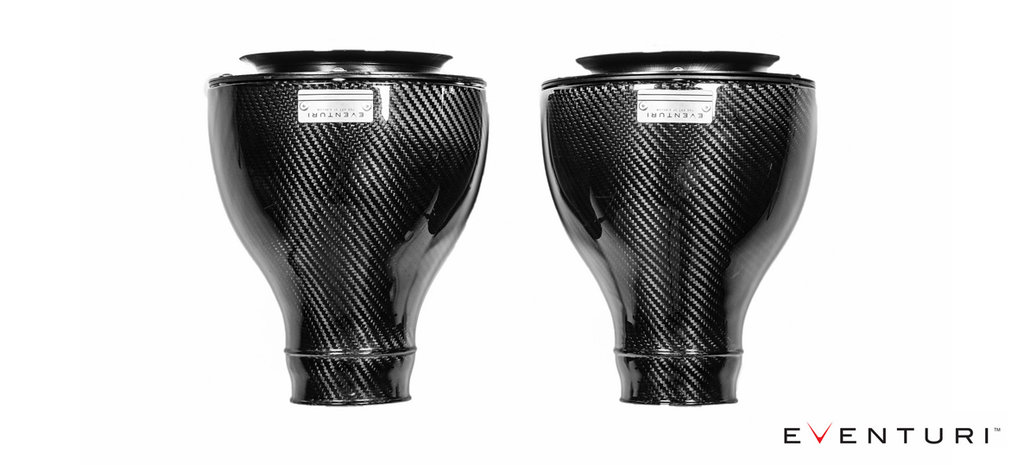

Carbon Intake Housing Assembly

Made from 100% Prepreg Carbon Fibre of the highest quality, the craftsmanship on our filter housings is second to none. This encapsulates the filter and is mated to an aluminum inlet cowl to ensure a smooth inlet flow path.

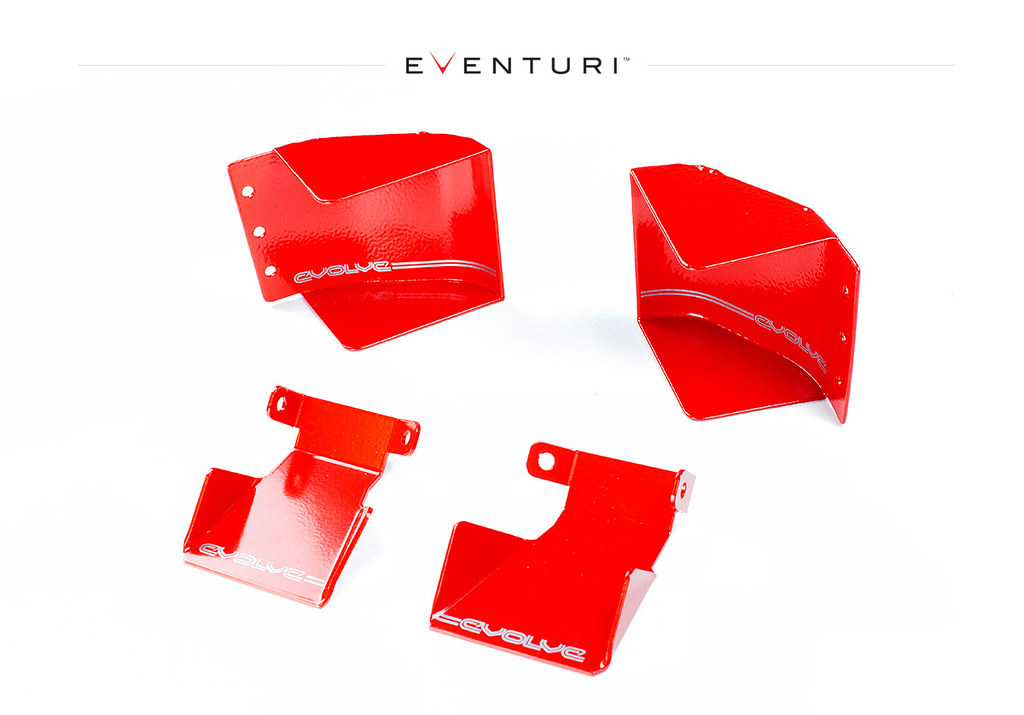

Air Scoops

Laser cut from aluminium and then powder coated, there are 2 scoops which located behind the front nose grills and another 2 which locate in the lower brake ducts. The front scoops are curved to smoothly direct ambient air into the stock ducting which then displace heated air from the intake area. The 2 lower scoops direct ambient air directly into the mouths of the intakes.

MAF tubes

The MAF tubes are CNC machined from aluminium and then anodised. The MAF boss itself is machined from an engineering plastic to minimise the heat soak into the sensor through conduction. All dimensions are tightly toleranced to ensure the MAF sensor works as intended.

Heat Shields

There are 2 aluminium heat shields with neoprene lining. They locate on the engine side of each intake and effectively deflect hot air from the radiator – especially when the fan comes into operation.

Mounting Brackets

The mounting brackets are precision made to ensure a secure and exact fit. Both housings secure to anti-vibration mounts and the third bracket is to secure the washer filler on the E60 M5.

Montage:

Motorsport24.nl is de webshop van Chip Performance. Wij kunnen ook uw Eventuri BMW E6X M5/M6 Black Carbon Intake voor u monteren tegen een scherp uur tarief. Onze werkplaats is voorzien van het nieuwste gereedschap & vakkundig personeel waardoor wij alles snel en efficiënt kunnen installeren.
