Beschrijving
Merk: Eventuri
Type: Mercedes A35 AMG
Artikelnummer: EVE-A35-CF-CHG
Filter type:
Beschrijving:

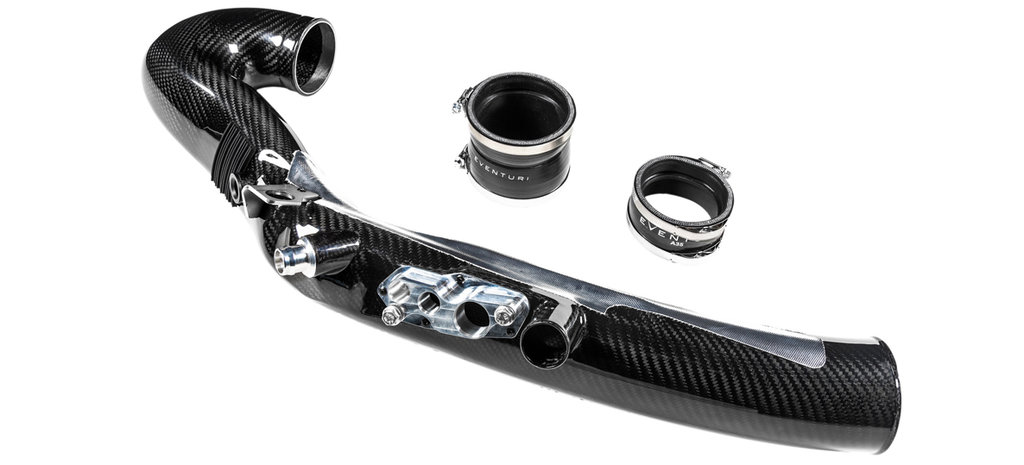

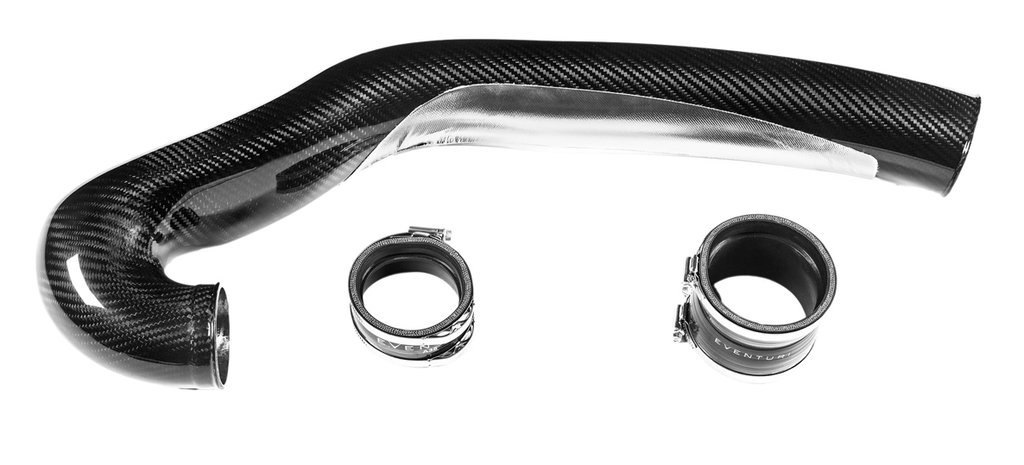

MERCEDES A35 A250 TURBO TUBE
*Some images show our A35 Intake system available separately
Fitment: Mercedes A35 AMG, CLA35 AMG, A250, CLA250
The Mercedes A35 Eventuri Turbo Tube has been developed to provide the turbo with a less restrictive flow path as compared to the stock tube. We have managed to increase the internal volume as well as eliminating the ridged flexible section at the airbox side.

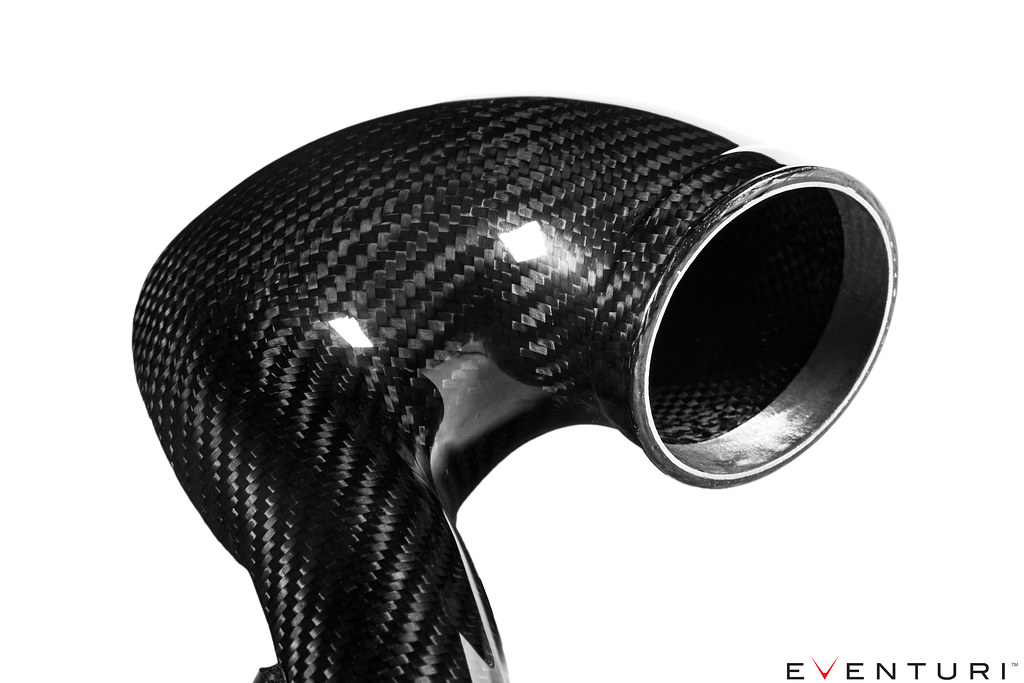

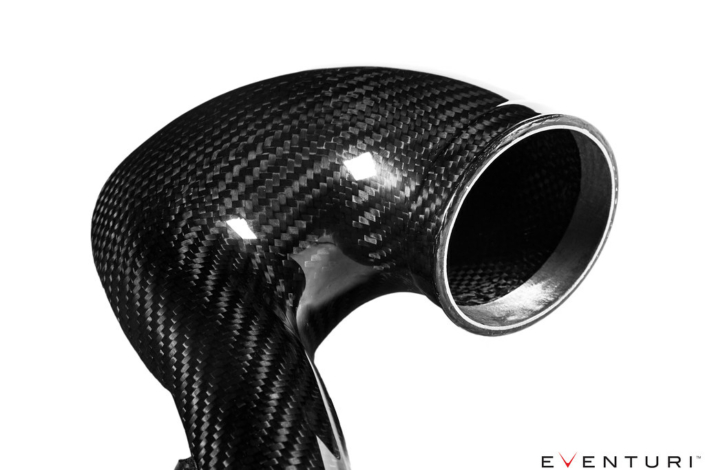

By using a completely solid tube all the way from the intake to the turbo, the flow path is smoother and therefore airflow can remain more laminar. To account for engine movement, our A35 intake has a floating tube, which can move within the airbox. The shape of the carbon tube at the turbo end has been optimised using CFD to minimise turbulence.

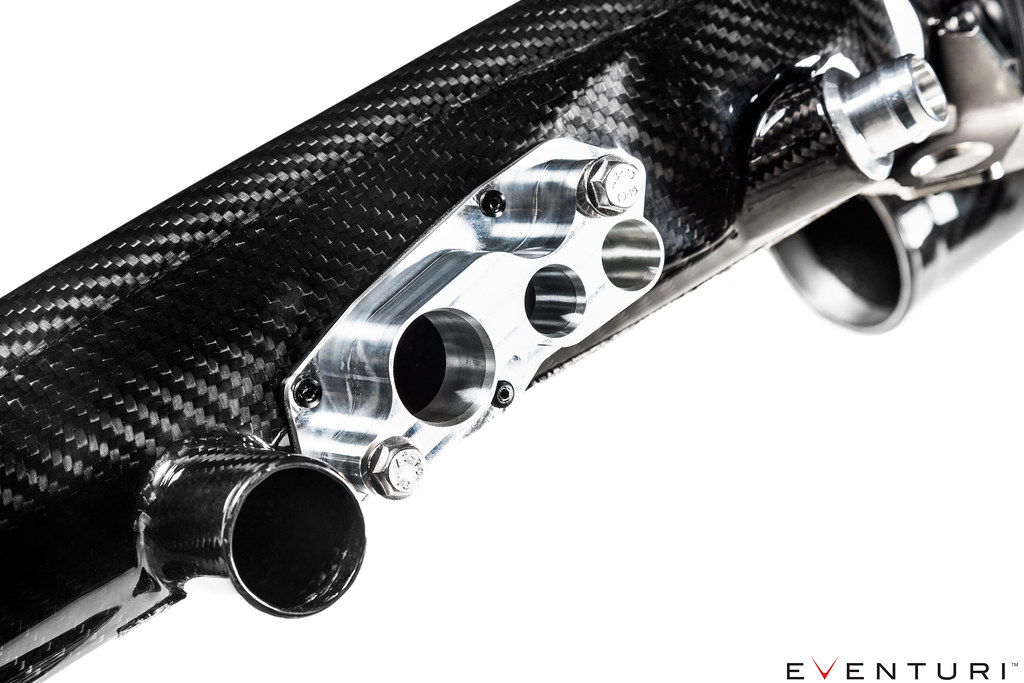

The connection to the turbo is achieved with an innovative silicon coupler that features an internal thermal separator between the carbon tube and the metal turbo housing. The multiple breather connectors at the back of the tube are taken care of with a CNC machined block which also provides a smooth internal surface for airflow within the tube.
Part Numbers:
EVE-A35-CF-CHG : Mercedes A35 AMG, A250 Turbo Tube
The Eventuri A35-A250 Turbo Inlet Tube is manufactured from prepreg carbon fiber and come with a number of other components engineered to perform a specific purpose and fabricated to the highest of standards.
Fitment is available for the A35, CLA35 and A250. The inlet tube is designed to fit our intake system only.
Here are the details for each component and the design ethos behind them:

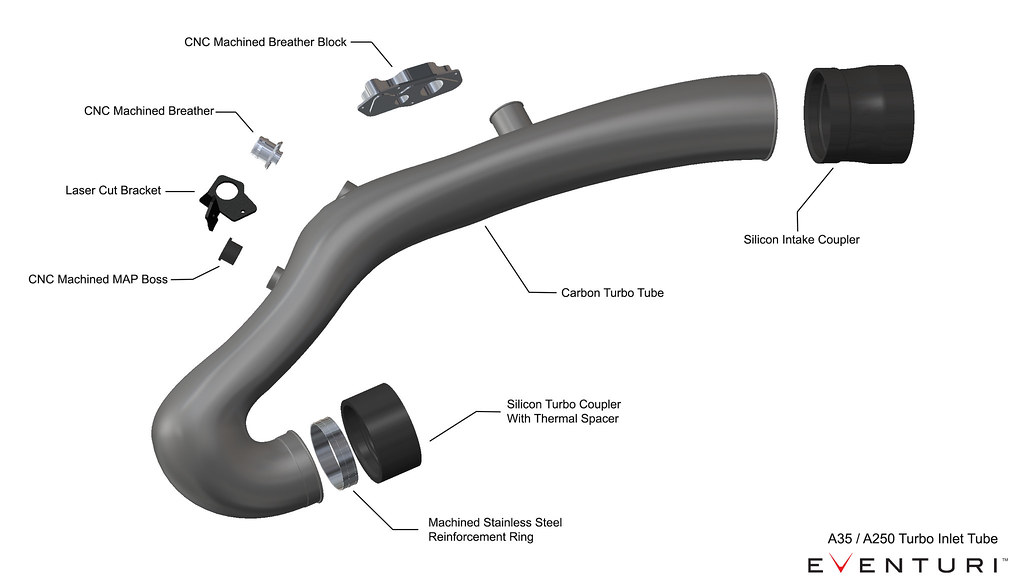

Each inlet system consists of:
Prepreg Carbon Tube
CNC Machined Breather Block
CNC Machined MAP Boss
CNC Machined Breather Connector
CNC Machined Reinforcement Ring
Laser Cut Bracket
Silicon Couplers With Oil Resistant Lining
Marine Grade Stainless Steel Hose Clamps
Montage:
Motorsport24.nl is de webshop van Chip Performance. Wij kunnen ook uw Eventuri Mercedes-Benz GLB35 AMG Turbo Tube (X247) voor u monteren tegen een scherp uur tarief. Onze werkplaats is voorzien van het nieuwste gereedschap & vakkundig personeel waardoor wij alles snel en efficiënt kunnen installeren.
Chip Performance beschikt over een nieuwe MAHA MSR testbank waarbij we tot 1500pk motorvermogen kunnen meten. Op verzoek kunnen we een vóór- en na vermogensrun doen zodat u kan zien dat de geïnstalleerde onderdelen werken zoals opgegeven. Ook voor Chiptuning bent u bij ons aan het juiste adres.
Wilt u dat wij de montage doen? Geef dit dan aan in de bestelling en wij nemen contact met u op om een afspraak in te plannen.
