Beschrijving
TTE Audi RS3 8V.2 2.5T DAZA/DNWA TTE600 Race EVO Upgrade Turbocharger
Attentie! Bij een “revisie” turbo zult u de huidige turbo(‘s) van uw auto moeten aanleveren.
TTE heeft tegenwoordig langere levertijden dan normaal – stuur een email naar [email protected] voor meer informatie betreffende de levertijd van dit product!
Voertuigspecificaties:
Merk: Audi
Model: RS3 8V.2
Motor: 2.5T DAZA/DNWA
Productspecificaties:
Producent: TTE
Artikelnummer: TTE10400.1
Beschrijving:

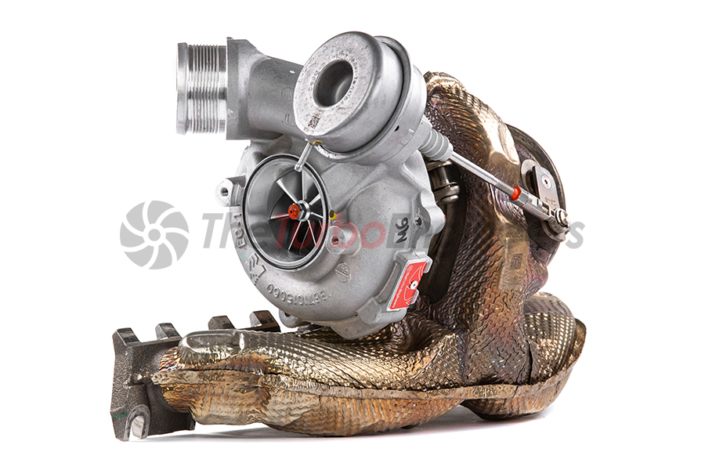

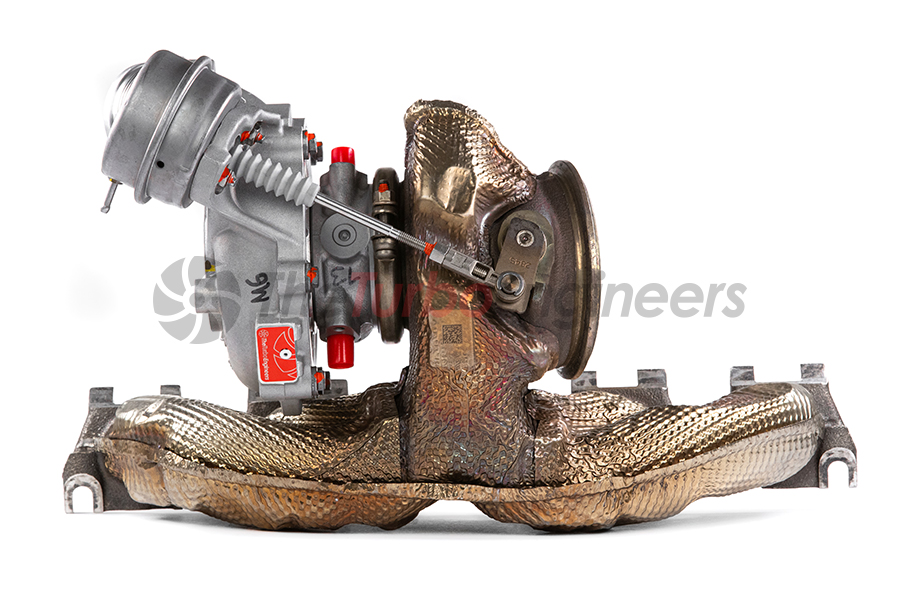

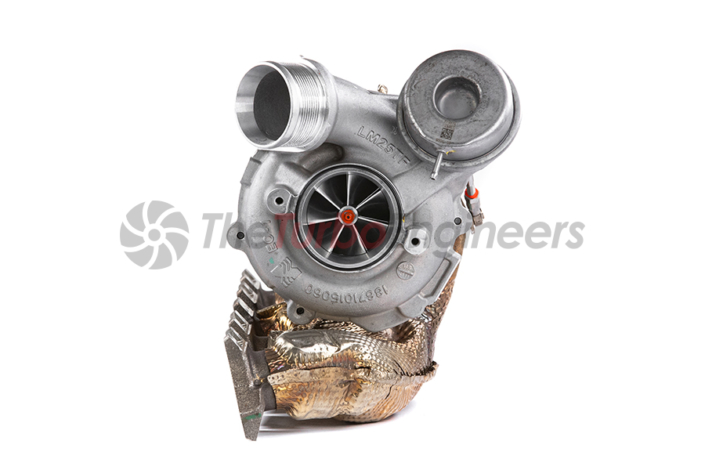

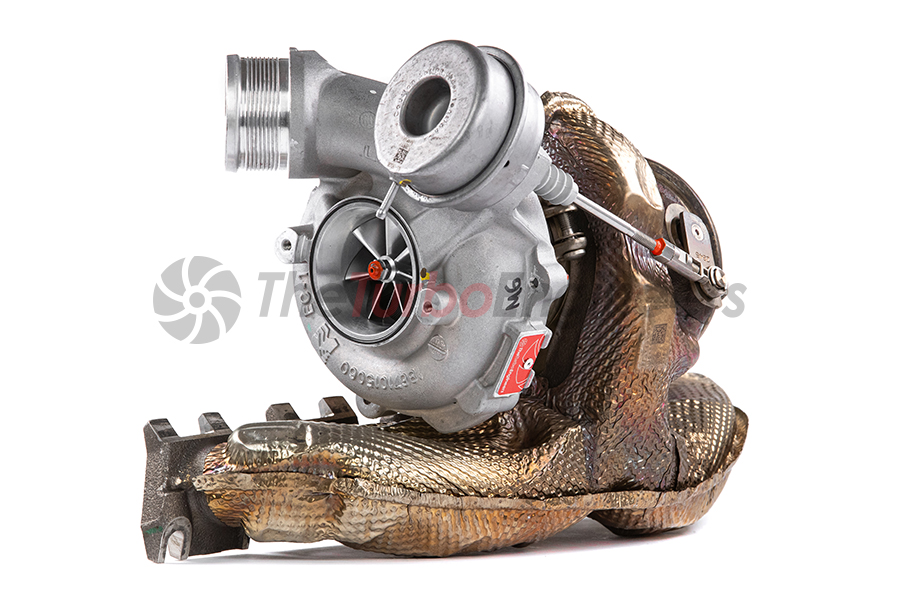

A TTE600 RACE Is an original RS3 8V.2/TTRS 8S turbocharger for the DAZA & DNWA 2.5 TFSI EVO engine that we the THETURBOENGINEERS Rework to make a class-leading safe first step for a performance hybrid turbocharger, giving super-fast spool and response and a nice bump in extra HP overstock the stock turbo. Tested, Developed & Proven by MTR Performance for 1 year approx before release. Tuners have noticed faster response vs stock turbo!
Designed for the customer not wanting peak numbers but a reliable fast spooling turbo and still being plug & play fitting with an upgrade inlet (same size as TTE700).

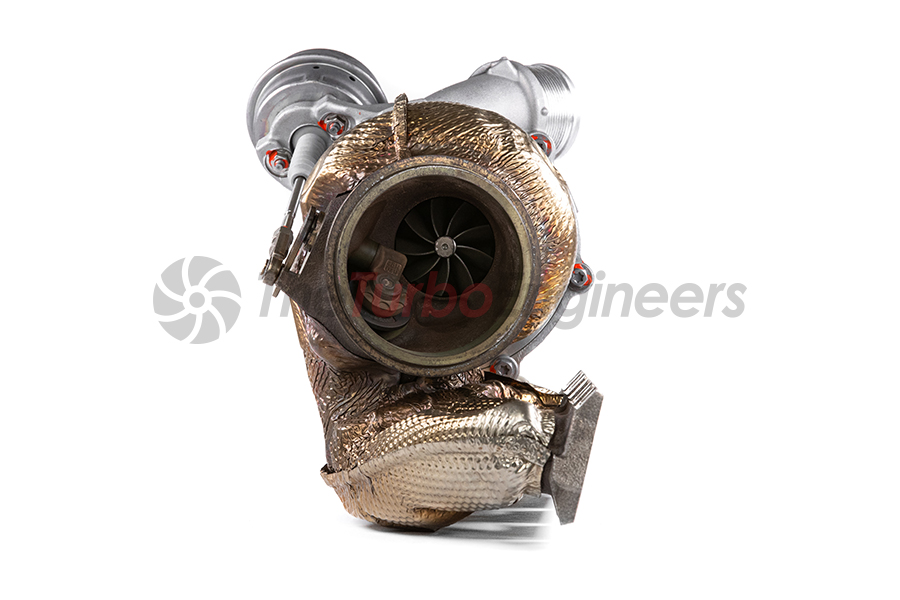

The compressor wheel is exchanged for a milled aluminum wheel with state-of-the-art geometry, 7+7 blade so producing extra power. Equally, we change the original exhaust turbine for a far larger but very lightweight 9 blade TTE designed turbine, for lower exhaust gas backpressure, giving greater performance. We also fitted a proven TTE motorsport upgrade bearing system for durability.
Boost response was focused on when we were designing this unit and it does not disappoint.
If ordering new, we use the latest generation of BorgWarner original turbochargers with the latest spec Audi thermal heat isolation shielding on the exhaust manifold & turbine housing to lower engine bay temperatures and ensure the best performance and safety.
Please note if you send an older generation turbo, without the original AUDI thermal shielding for the “upgrade” process, we will rework your turbo and return without the shielding, unless you buy the extra thermal Isolation process. Depending on stock availability we may substitute TTE thermal shielding and give AUDI original thermal shielding instead.
Equilibrium
Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled, and then the CHRA are dynamically balanced, but this time depending on the application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.
Features :
TTE Billet Highly efficient compressor geometry
TTE 9 Blade High-flow Low-mass turbine
TTE Upgrade bearing pack
Genuine BorgWarner Turbocharger as the base part
Genuine BorgWarner actuator
Thermally shielded exhaust manifold and housing
CNC Optimized Compressor Cover Machining Clearances
Plug and Play Installation
630PS proven on 102RON / 590HP on 99Ron proven
Single parts finely balanced then components assembled and core high-speed VSR balanced
Supplied with a balance test result document
Proven TheTurboEngineers quality
Made in Germany
Montage:
Motorsport24 is de webshop van Chip Performance. Wij kunnen ook uw TTE Audi RS3 8V.2 2.5T DAZA/DNWA TTE600 Race EVO Upgrade Turbocharger voor u monteren tegen een scherp uur tarief. Onze werkplaats is voorzien van het nieuwste gereedschap & vakkundig personeel waardoor wij alles snel en efficiënt kunnen installeren.
Chip Performance beschikt over een nieuwe MAHA MSR testbank waarbij we tot 1500pk motorvermogen kunnen meten. Op verzoeken kunnen we een voor en na dynorun doen zodat u kan zien dat de geïnstalleerde onderdelen werken zoals opgegeven. Ook voor Chiptuning bent u bij ons aan het juiste adres.
Wilt u dat wij de montage doen? Geef dit dan aan in de bestelling en wij nemen contact met u op om een afspraak in te plannen.
